M14D este remarcabilă în orice detaliu, practicabil cu orice sistem de sunet de dimensiuni medii în care se așteaptă un amplificator eficient, compact și bine pus la punct a funcționa în mod fiabil pe o perioadă lungă de timp.Deoarece 2Ω, de obicei, nu este necesar în sistemele mai mici, M14D este structurat în mod corespunzător cu optimizarea acesteia in 4Ω.
Specificatii pentru Powersoft M14D:
| Number of channels | 2 | ||||
|---|---|---|---|---|---|
| Output power | 4 Ω | 8 Ω | 8 Ω bridged | ||
| EIAJ test standard, 1 kHz, 1% THD | 2 x 700 W | 2 x 360 W | 1 x 1,400 W | ||
| Max. output voltage | 85 V(peak) | ||||
| Max. output current | 65 A(peak) | ||||
| AC MAINS POWER | |||||
|---|---|---|---|---|---|
| Power supply | Universal, regulated switch mode | ||||
| Operating voltage | 100 V - 240 V (factory selection) ± 10%, 50 Hz - 60 Hz | ||||
| Consumption / current draw | @ 230 V | @ 115 V | |||
| Idle | 39 W | 0.3 A | 0.6 A | ||
| 1/8 of max. output power @ 4 Ω* | 283 W | 1.9 A | 3.8 A | ||
| 1/4 of max. output power @ 4 Ω* | 538 W | 3.5 A | 7.0 A | ||
| THERMAL | |||||
|---|---|---|---|---|---|
| Environmental operating temperature | 0-45° C / 32-113° F | ||||
| Thermal dissipation | Fan, continuously variable speed, temperature controlled, front to rear airflow | ||||
| Idle | 33 kcal/hr | 133 BTU/hr | |||
| 1/8 of max. output power @ 4 Ω* | 93 kcal/hr | 368 BTU/hr | |||
| 1/4 of max. output power @ 4 Ω* | 162 kcal/hr | 641 BTU/hr | |||
| AUDIO | |||||
|---|---|---|---|---|---|
| Gain | 32dB, 30dB, 28dB, 26dB, 24dB, 22dB, 20dB, 18dB, 14dB, 4dB, -∞, user selectable | ||||
| Input sensitivity @ 8 Ω | 1.4 V / 5.14 dBu | ||||
| Max input level | 6 V / 17.7 dBu | ||||
| Input impedance | 10 kΩ | ||||
| Frequency response | 10 Hz - 30 kHz (1 W @ 8 Ω, ± 3 dB) | ||||
| THD+N / SMPTE IMD | ≤ 0.05% @ 1/2 of full power | ||||
| DIM100 IMD | typ. <0.005% (<0.02% @ >0.1 W) | ||||
| S/N ratio | >113 dBA (20 Hz - 20 kHz, A weighted) | ||||
| Crosstalk separation | >70 dB @ 1 kHz | ||||
| Slew rate | 40 V/µs @ 8 Ω, input filter bypassed | ||||
| Damping factor @ 8 Ω | >5000 @ 100 Hz | ||||
| FRONT PANEL | |||||
|---|---|---|---|---|---|
| Indicators | 3 LEDs per channel: 2 x green, 1 x red 3 status LEDs: 1 x green, 1x white, 1 x yellow | ||||
| Controls | 1 stepped level attenuator pot per channel Mains switch | ||||
| Maintenance | Dust filters foam behind front panel | ||||

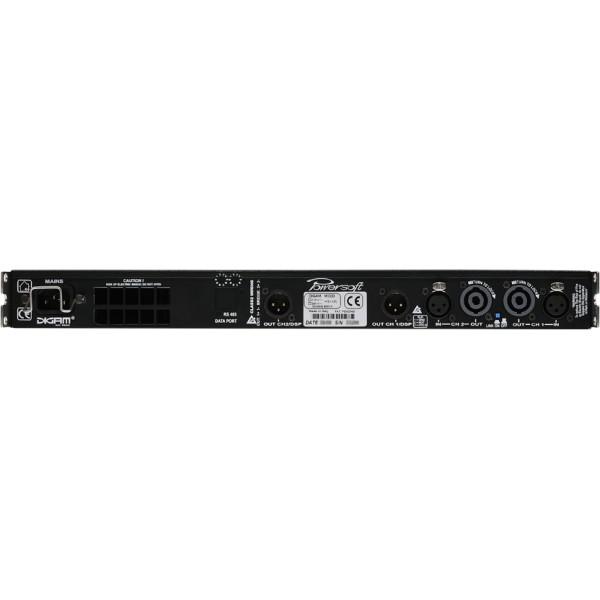

| REAR PANEL | |||||
|---|---|---|---|---|---|
| Audio signal input connectors | 2 x balanced Neutrik® XLR female | ||||
| Loudspeakers output connectors | 2 x Neutrik® Speakon NL4MD | ||||
| AC mains | IEC C13 16A connector; AC mains cord with 3-pin plug 15A for US, IEC Schuko 16 A for every other nation | ||||
| Controls | 1 x link switch, linking analog inputs 1 & 2 | ||||
| CONSTRUCTION | |||||
|---|---|---|---|---|---|
| Dimensions | W 483 mm / 19", H 44.5 mm / 1U, D 358 mm / 14.1" | ||||
| Weight | 7.3 kg / 16 lbs | ||||
| Chassis | 1 mm (0.04”) steel chassis and steel removable dust cover, 3 mm (0.12”) steel front panel, screw hole preotection, steel side reinforcement & rear support | ||||
| M14D DSP+ETH ADDITIONAL SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Output power | 4 Ω | 8 Ω | 8 Ω bridged | ||
| EIAJ test standard, 1 kHz, 1% THD | 2 x 700 W | 2 x 360 W | 1 x 1,400 W | ||
| REAR PANEL | |||||
| Network data port Ethernet | 1 x RJ45 with activity LED with 2 rotary address switches | ||||
| DSP preset selection | 1 x Pushbutton (stepping through bank of 4 presets) 1 x 4 LED preset indicators | ||||
| DSP | |||||
|---|---|---|---|---|---|
| A/D converter | Dual 24bit 24/48 kHz Tandem® architecture, dynamic range 118 dB(A) mono, 100 dB(A) stereo, THD <0.02% (20 Hz - 20 kHz) | ||||
| D/A converter | Dual 24bit 24/48 kHz Tandem® architecture, 115 dB(A) dynamic range, THD <0.02% (20 Hz - 20 kHz) | ||||
| Presets | Bank of 4 presets, management and upload via Armonía Pro Audio Suite™ | ||||
| Delay for time alignment | <10 ms per output | ||||
| Crossover filters | Butterworth, Linkwitz-Riley, Bessel, 6dB/oct to 48dB/oct | ||||
| Output equalizer | Up to 9 fully parametric per channel: peaking, hi/lo shelving, hi/lo pass, band pass, band stop, all pass | ||||
| Input equalizer | 5 types (PEQ, shelving, band pass, band stop, all pass) | ||||
| Limiters | Peak limiter, RMS limiter, frequency dependent RMS limiter | ||||
