YAMAHA

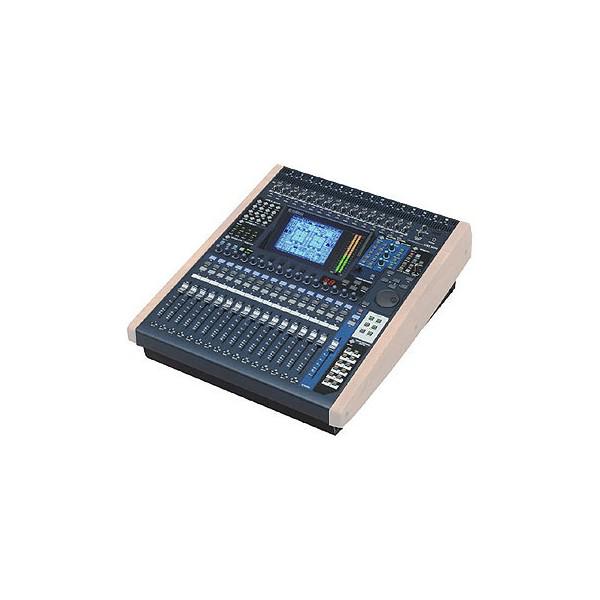

DM1000

- 24-bit / 44.1-96KHz full support
- 48 mixing channels / 8 bus
- Integrated structure / 320 x 240 (1…½4 VGA) graphic LCD monitor
- Onboard analog I/O (24-bit AD/DA converters):
> 16 analog mic/line (w. phantom power) + 4 line inputs (OMNI IN)
> Stereo, Studio, Control Room, OMNI 1-12 outputs
- 2 Option Slot for mini-YGDAI cards (additional Digital or Analog I/O)

- Total recall (99 Scene Memories)
- Libraries (EQ, DYN, FX, I/O Patching, Channel setup)
- Automix

- Level control (inputs and returns): 17 motorized faders (100 mm. / touch-sensitive)
- 4 bands parametric EQ and Dynamics on input channels 1-48, Buss 1-8, Aux 1-8, ST out
- Selected channel control (EQ, Pan, Routing, Joystick control)
- Internal I/O Digital Patching
- Fader Groups / Mute groups functions
- Surround mixing functions (up to 6.1)
- Surround monitoring functions
- Automix functions
- Assignable rotary encoders (16)
- Assignable User Keys (1-12 x 8 banks)
- Talkback control
- Integrated test oscillator
- RS422 port
- GPI control
- MIDI and DAW Remote control functions
- USB port
- Studio Manager Software (in bundle) for Macintosh and Windows platforms (Serial/USB).
- Meter Bridge (option)
- Cascade Card (option)
