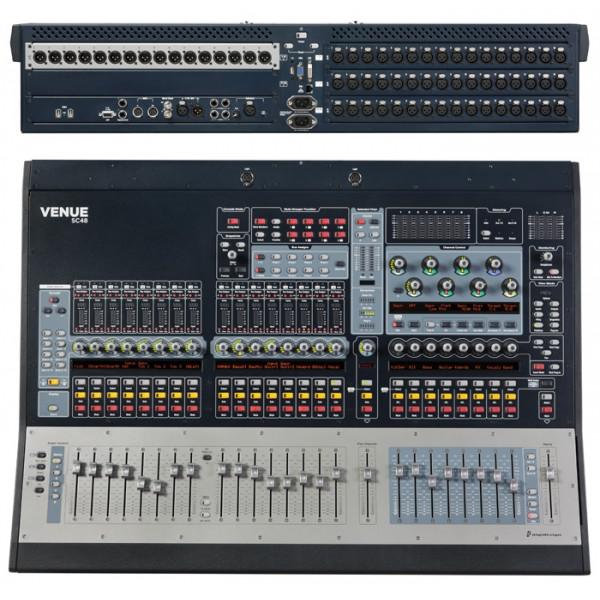

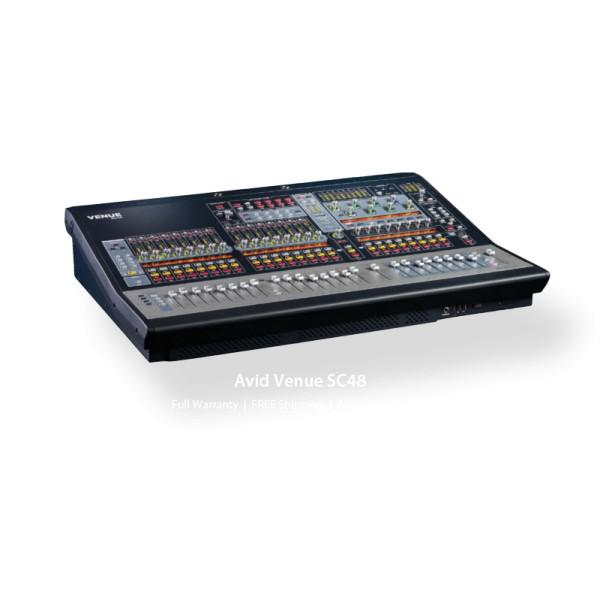

Avid Venue SC48, mixer digital complet integrat, consola de mixare cu 48 canale de microfon, 16 ieșiri de linie, auxiliare I / O și conectarea directă la Pro Tools LE. Include două surse de alimentare interne. Dimensiuni 850x380x1100. Greutate 56,7 kg.
Specificatii pentru Mixer Digital Avid Venue SC48:
| VENUE SC48 Hardware Specifications | |
|---|---|
| Maximum Height (front) Maximum Height (rear) | 3.9 inches (100 mm) 7.3 inches (186 mm) |
| Maximum Width | 38.95 inches (989 mm) with endcaps |
| Maximum Depth | 28.15 inches (715 mm) |
| Weight | 125 lbs (56.7 Kg) |
| Power Requirements | 100–240 V, 50–60 Hz, 200 W |
| USB Ports (5) | USB 2.0 |
| IEEE-1394 Port | FireWire (for Pro Tools only) |
| GPI Port | DB9 female |
| Footswitch Connectors (2) | 1/4-inch TRS |
| MIDI In/Out | 5-pin DIN female |
| Word Clock In/Out | BNC female |
| VGA Port | DB-15 mini-female (1024 x 768 resolution, mirrored display mode) |
| DVI Port | DVI female (1024 x 768 resolution, mirrored display mode) |
| ECx Ethernet Control | RJ-45 (for ECx remote control) |
| Console Light Connectors (2) | XLR3-F |
| SC48 General Audio Specifications | |
|---|---|
| Internal Sample Frequency | 48 kHz |
| External Sample Frequency | 48 kHz +/-10 ppm (Word Clock input) |
| Processing Delay | Less than 2.3 ms (48 channels, stage input through L-R bus to stage output) |
| Internal Processing | Up to 48-bit, fixed point (288 dB internal dynamic range) |
| Frequency Response | +/-0.2 dB (22 Hz – 20 kHz BW, relative to 1 kHz) |
| Dynamic Range | 108 dB typ |
| Crosstalk | -100 dB typ (adjacent stage inputs to L-R bus, @ 1kHz) |
| Residual Output Noise | -90 dBu typ (20 Hz – 20 kHz BW) |
| SC48 Stage I/O (standard configuration) | |
|---|---|
| AI16 Analog Input Cards (3) | |
| Connector (x16) | XLR3-F, balanced |
| Phantom Power | +48V (individually switchable per channel via software), 10 mA max |
| Maximum Input Level | +32 dBu with pad* |
| Pad | 20 dB |
| Gain | +10 dB to +60 dB |
| Input Impedance | pad off: 5.5k Ohm, leg to ground pad on: 3.8k Ohm, leg to ground |
| EIN | -126 dBu typ (maximum gain, 150 Ohm source, 20 Hz – 20 kHz BW, unweighted)* |
| A/D Converter | 24-bit, delta sigma |
| AO16 Analog Output Card (1) | |
| Connector (x16) | XLR3-M, balanced |
| Maximum Output Level | +24 dBu* |
| Output Impedance | 50 Ohm, leg to ground |
| D/A Converter | 24-bit, delta sigma, 128x oversampling |
* 0 dBu = 0.775V rms
| SC48 FOH I/O | |
|---|---|
| Talkback Mic Input | |
| Connector | XLR3-F |
| Phantom Power | +15V @ 6mA (switchable) |
| Sensitivity | -2 dBu to -32 dBu (variable in 6 gain steps) |
| Input Impedance | 4k Ohms |
| 2-Track Analog Inputs | |
| Connector | 1/4-inch TRS |
| Maximum Input Level | +24 dBu |
| Input Impedance | 10k Ohms |
| 2-Track Analog Outputs | |
| Connector | 1/4-inch TRS |
| Maximum Output Level | +24 dBu |
| Output Impedance | 50 Ohms |
| 2-Track Digital AES Inputs | |
| Connector | XLR3-F |
| Format | AES/EBU |
| Word Length | 24-bit |
| Sample Rate | 48 kHz |
| Sample Rate Conversion | 3:1 ratio |
| 2-Track Digital AES Outputs | |
| Connector | XLR3-M |
| Format | AES/EBU |
| Word Length | 24-bit |
| Sample Rate | 48 kHz |
| Dithering | None |
| Channel Status Info | Pro, Audio 48K, No Emphasis |
| Headphone Output | |
| Connector (1) | 1/4-inch TRS, unbalanced |
| Output Impedance | 50 Ohms |
| Maximum RMS Power Output (at +21 dBu) | 106 mW (with 32-Ohm headphones) 130 mW (with 600-Ohm headphones) |
