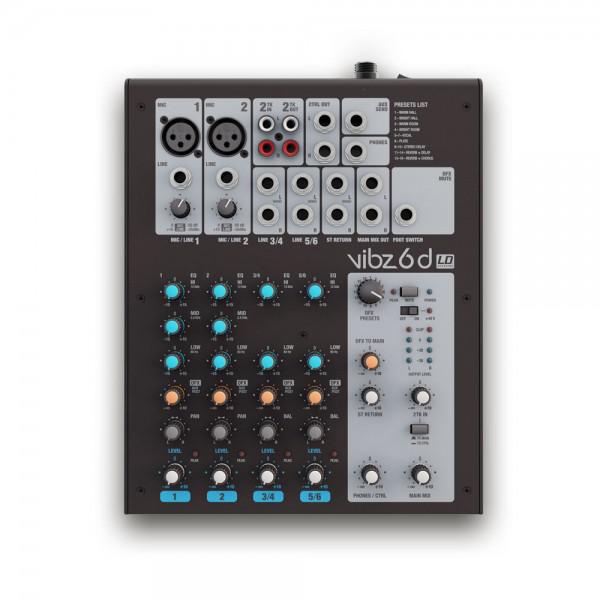

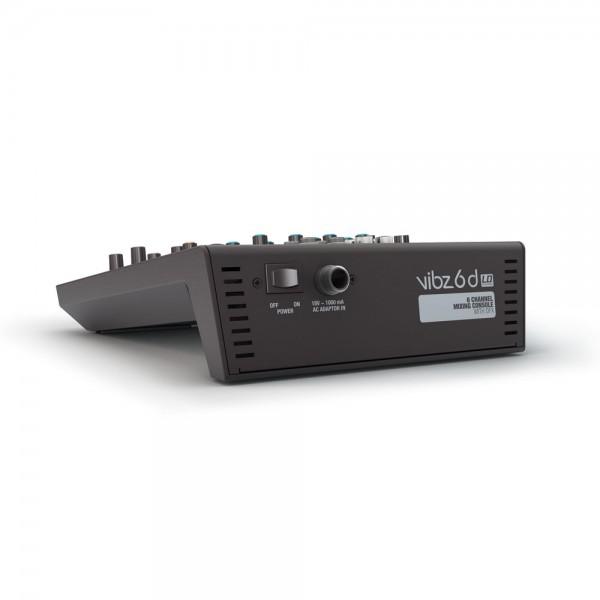

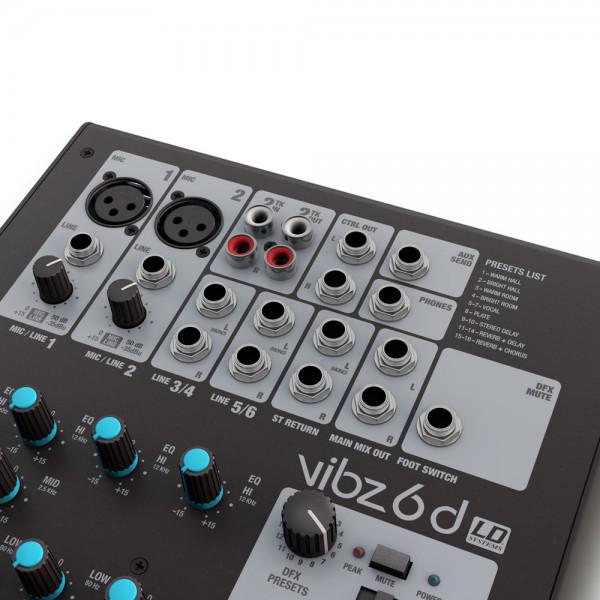

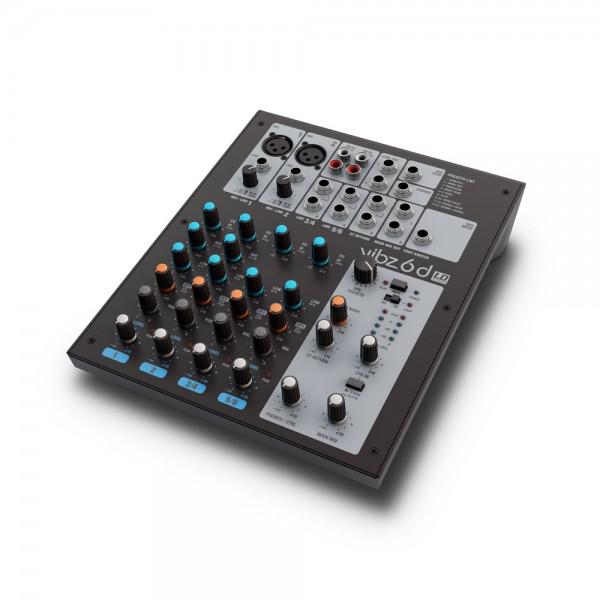

Mixer pasiv LD-Systems VIBZ 6 D

Specificatii:

• Numar canale: 6
• Mono Mic/Line Input Channels: 2
• Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
• Mono Mic Input Type: electronically balanced
• Frequency Response Mono Mic Input: 10 - 45,000 Hz
• Amplification Range Mono Mic Input: 0 - +50 dB
• Insert:    n/a
• Channel Crosstalk: 62 dB
• THD Mono Mic Input 0.0058 %
• Impedance Mono Mic Input: 4 kOhm
• S/N Ratio Mono Mic Input: 113 dB
• Mono Line Input Type: electronically balanced
• Amplification Range Mono Line Input: 0 - +50 dB
• THD Mono Line Input: 0.0045 %
• Impedance Mono Line Input: 21 kOhm
• S/N Ratio Mono Line Input: 116 dB
• Frequency Response Mono Line Input: 10 - 45,000 Hz
• Mono Channel Equalizer Treble:    +/- 15 dB  12,000 Hz
• Mono Channel Equalizer Mids: +/- 15 dB  2,500 Hz
• Mono Channel Equalizer Bass: +/- 15 dB  80 Hz
• Control Elements Mono Mic and Line Input Channels: Channel volume,  PAN, DFX/AUX (Post), 3 Band-EQ (Low, Mid, High), Gain
• Phantom Power: +48 V DC switchable
• Low Cut: n/a
• Compressor: n/a
• Stereo Channels:
• Stereo Line Input Channels:    2
• Stereo Line Input Channels:    6.3 mm mono jack (Lmono, R)
• Stereo Line Input Type: unbalanced
• Frequency Response Stereo Line Input: 10 - 45,000 Hz
• Channel Crosstalk: 62 dB
• THD Stereo Line Input: 0.0045 %
• Impedance Stereo Line Input: 3.7 kOhm
• S/N Ratio Stereo Line Input: 116 dB
• Stereo Channel Equalizer Treble: +/- 15 dB  12,000 Hz
• Stereo Channel Equalizer Mids: n/a
• Stereo Channel Equalizer Bass: +/- 15 dB  80 Hz
• Control Elements Stereo Line Input Channels: Channel volume, Balance, DFX/AUX (Post), 2 Band-EQ (Low, High)
• Main Section:
• AUX/Effect Send Channels:    1
• AUX/Effect Send Connections:    6.3 mm stereo jack, unbalanced
• Stereo AUX Return Channels: 1 x stereo
• Stereo AUX Return Connections: 2 x 6.3 mm stereo jack
• Stereo Tape Output Channel: 1 x stereo
• Stereo Tape Output Connections: 2 x RCA (Cinch)
• Stereo Tape Input Channel: 1 x stereo
• Stereo Tape Input Connections: 2 x RCA (Cinch)
• Unbalanced Stereo Main Outputs: 1
• Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
• Impedance Unbalanced Stereo Main Outputs: 120 Ohm
• Max. Level Unbalanced Stereo Main Outputs:    +20 dBV
• Stereo Control Room Outputs: 1
• Stereo Control Room Output Connections: 6.3 mm stereo jack, unbalanced
• Headphone Output: 1
• Minimum Headphone Impedance: 30 Ohm
• Headphone Output Connections: 6.3 mm stereo jack
• Digital Effects Processor: Yes, 24-bit AD/DA Resolution
• No. of Presets: 16
• Footswitch Connection DFX Mute: 6.3 mm stereo jack
• Control Elements Main Section: Headphones / Control Room Volume, Stereo Return Volume, DFX To Main Volume, DFX Presets, Master-Volume, 2TR assignment (Main, CTRL Room), 2TK Volume, Phantom Power, DFX Mute switch
• Display Elements: 4-segment Level Meter, Phantom Power, DFX Peak / Mute, Power, Channel Peak
• Power Supply: 18 V AC - 1 A, External Power Pack
• Dimensiuni: 209 x 68 x 260 mm
