DIFUZOR FAITALPRO 12FH510
| PRODUCATORI | : FAITAL | |
 |
|
IN ACEASTA PERIOADA, PRETURILE POT AVEA MODIFICARI FRECVENTE
● Inainte de a plasa o comanda, va rugam sa ne contactati telefonic sau prin e-mail pentru verificarea disponibilitatii stocului si al pretului. Va multumim!
● PRETURILE PRODUSELOR POT FI MODIFICATE, CHIAR DACA A FOST PLASATA O COMANDA PENTRU ACELE PRODUSE, CONSUMATORUL URMAND SA FIE INSTIITANT DESPRE ACEASTA MODIFICARE.

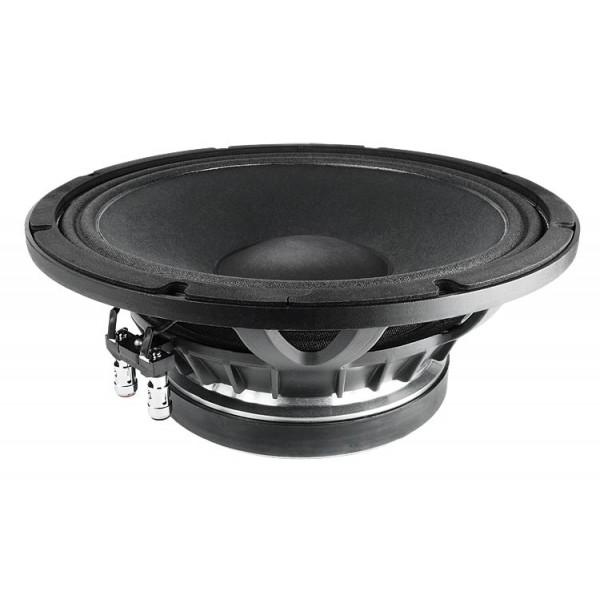

Difuzor FaitalPRO 12FH510, 500W, un difuzor de 12", cu o gama de frecventa 45÷3150 Hz, pentru un sunet eficient, puternic, restrans ce lucreaza in conditii optime.

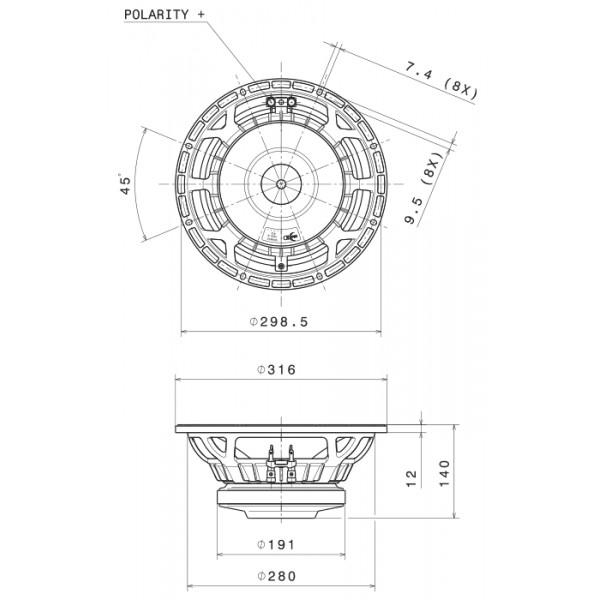

NOMINAL SPECIFICATIONS
| Nominal Diameter | 300 mm (12 in) |
| Overall Diameter | 316 mm (12.44 in) |
| Bolt Circle Diameter | 298.5 mm (11.75 in) |
| Baffle Cutout Diameter | 282 mm (11.10 in) |
| Depth | 140 mm (5.51 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Net Weight | 8 Kg (17.64 lb) |
| Shipping Box (Single Carton Box) |
350x346x190 mm (13.78x13.62x7.48 in) |
| Shipping Weight | 8.7 Kg (19.18 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.4 Ohm |
| AES Power Handling (1) | 500 W |
| Maximum Power Handling (2) | 1000 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 45÷3150 Hz |
| Voice Coil Diameter | 77 mm (3 in) |
| Winding Material | Al |
| Former Material | Glass Fiber |
| Winding Depth | 18.5 mm (0.73 in) |
| Magnetic Gap Depth | 10.5 mm (0.41 in) |
| Flux Density | 1.2 T |
| Magnet | Ferrite Ring |
| Basket Material | Aluminum |
| Demodulation | No |
| Cone Surround (3) | M-Roll |
| NET Air Volume filled by Loudspeaker | 2.9 dm^3 (0.102 ft^3) |
| Spider Profile | 1x variable height waves |
THIELE AND SMALL PARAMETERS
| Fs | 45 Hz |
| Re | 5.1 Ohm |
| Qes | 0.25 |
| Qms | 10.9 |
| Qts | 0.24 |
| Vas | 69.56 dm^3 (2.46 ft^3) |
| Sd | 489 cm^2 (75.8 in^2) |
| Xmax (4) | 7.5 mm |
| Xdamage (5) | 21.5 mm |
| Mms | 61 g |
| Bl | 18.9 N/A |
| Le | 0.9 mH |
| Mmd | 54.9 g |
| Cms | 0.20 mm/N |
| Rms | 1.58 Kg/s |
| Eta Zero | 2.5 % |
| EBP | 180 Hz |
