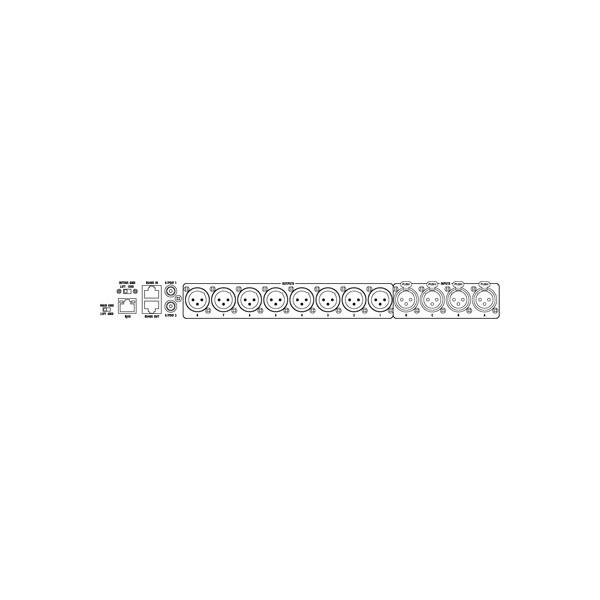

Digital speaker management system Stage Line DSM-480LAN. 4 inputs and 8 outputs (XLR, balanced)

Digital speaker management system Stage Line DSM-480LAN. 4 inputs and 8 outputs (XLR, balanced) ; 2 x S/PDIF digital input, stereo ; DSP: 2 x DREAM SAM3716, 24 bits (data) x 96 bits (coeff.) ; Dynamic range: > 110 dB ; Routing matrix for routing the inputs to the outputs as desired ; Graphical user interface, PC editing software (up to 32 DSM-480LAN can be administered) ; 24 user presets can be stored ; Flash card for reading and storing presets ; Integrated tone generator for pink noise and white noise ; Remote control via USB, RS-485 or TCP/IP LAN. With the optional USB/RS-485 converter DA-70157, it is possible to connect a PC or notebook with serial interface to the serial RS-485 interface and to address and configure several units connected to each other . ; Dot matrix display with 2 x 24 characters ; VU meter with 7 LEDs for each channel, optionally for level display or limiter ; 482 mm (19") rack installation, 1 RS .
