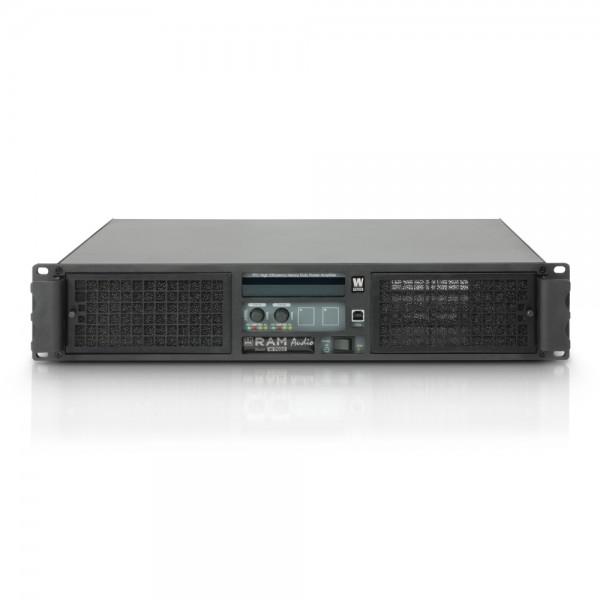

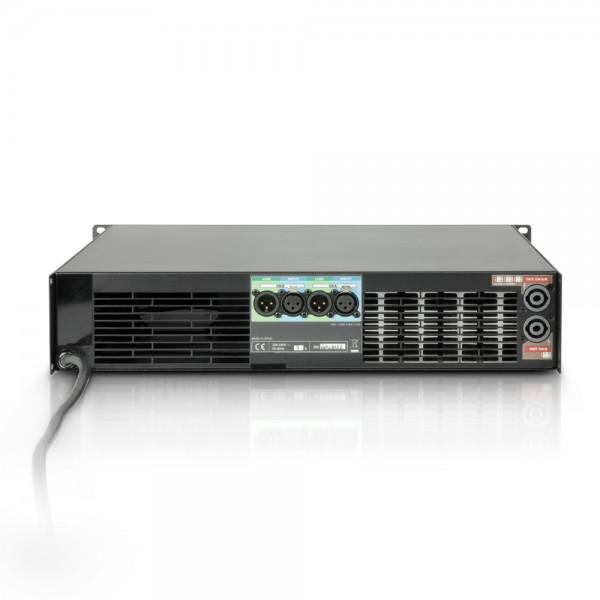

Amplificator 2 canale Ram Audio W 9000 DSP.

Putere: 2x4400W(2ohmi), 2x2300W(4ohmi), 2x1200W(8ohmi)





• Tip Produs: Amplificator de Putere
• Tip: 2-canale
• Putere Iesire (1 kHz 2 ohm): 2 x 4400 W
• Putere Iesire (1 kHz 4 ohm): 2 x 2300 W
• Putere Iesire (1 kHz 8 ohm): 2 x 1200 W
• Putere Iesire(1 kHz 4 ohm, bridged): 8800 W
• Putere Iesire (1 kHz 8 ohm, bridged): 4600 W
• Concept circuit: Clasa H
• Frecventa raspuns: 20 - 20,000 Hz
• THD: < 0,05 %
• S/N: 115 dB
• Factor amortizare: > 500
• Crosstalk: > 80 dB
• Voltage gain: 26 - 38 dB
• Sensibilitate Intrare: 4,9 dB / 2.5 dB / 1.2 dB
• Impedanta intrare: nebalansat 10 kohm, balansat 20 kohm
• Control: Power, 2 x volum, comutator dual/bridge
• Conectori Intrare Line: 2 x XLR
• Conectori Iesire Line: 2 x XLR
• Conectori Iesire: 2 x Speakon
• Sistemul de racire: ventilator
• Alimentare: 230 V
• Consum: 10 A
• Latime: 483 mm
• Inaltime: 89 mm
• Adancime: 460 mm
• Categoria produsului: extensie modul RAMDSP22W
• Tip: procesor digital
• AD/DA: 24-bit
• Rata de esantionare: 192 kHz (oversampling 256x)
• Tipuri de filtre: Butterworth, Bessel, Linkwitz-Riley
• Panta Filtru: pana la 48 dB / octava
• EQ intrare: 29 x parametri sau 29 x grafic pe fiecare canal
• EQ iesire: 20 filtre (parametri, rafturi, LP, HP, BP, SB) pe fiecare canal
• Delay intrare: pana la 80 m (230 ms) pe fiecare canal
• Delay Iesire: pana la 28 m (50 ms) pe fiecare canal
• Limitator: RMS Putere, Peak Output Voltage pe fiecare canal
• Functii DSP: Gain, Mute, Phase Inversion
• Intrari Line: 2
• Conectori intrare Line: XLR balansat
• Iesiri Line: 2
• Conectori iesire Line: XLR balansat
• Programare: prin portul USB sau Ethernet (optional)
• Caracteristici suplimentare: generator de semnal (pink noise, white noise, sine wave 20 Hz - 20.000 Hz)
