Powersoft Digram K3
| PRODUCATORI | : Powersoft | |
 |
|
IN ACEASTA PERIOADA, PRETURILE POT AVEA MODIFICARI FRECVENTE
● Inainte de a plasa o comanda, va rugam sa ne contactati telefonic sau prin e-mail pentru verificarea disponibilitatii stocului si al pretului. Va multumim!
● PRETURILE PRODUSELOR POT FI MODIFICATE, CHIAR DACA A FOST PLASATA O COMANDA PENTRU ACELE PRODUSE, CONSUMATORUL URMAND SA FIE INSTIITANT DESPRE ACEASTA MODIFICARE.

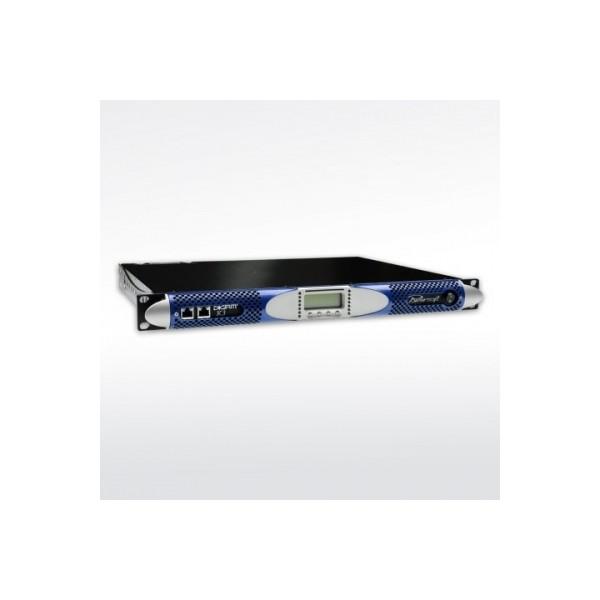

Powersoft Digram K3, modelul cel mai versatil din gama sa, atractiv datorita caracteristicilor sale, dimensiunilor și a putere de ieșire, K3 reprezinta o valoare remarcabilă. Are o putere de pana la 5.600 W, este un amplificator de clasa medie din gama sa, si cantareste doar 8 kg.
Specificatii pentru Powersoft Digram K3:
| Number of channels | 2 | ||||
|---|---|---|---|---|---|
| Output power | 2 Ω | 4 Ω | 8 Ω | 4 Ω Bridged | 8 Ω Bridged |
| EIAJ test, 1 kHz, 1% THD | 2 x 2,800 W | 2 x 2,600 W | 2 x 1,400 | 1 x 5,600 W | 1 x 5,200 W |
| Max. output voltage | 165 V(peak) | ||||
| Max. output current | 102 A(peak) | ||||
| AC MAINS POWER | |||||
|---|---|---|---|---|---|
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||||
| Operating voltage | 100-240 V ±10%, 50/60 Hz | ||||
| Power factor cos (φ) | >0.95 @ >500 W | ||||
| Consumption / current draw | @ 230 V | @ 115 V | |||
| Idle | 112 W | 0.57 A | 1.14 A | ||
| 1/8 of max. output power @ 4 Ω* | 813 W | 4.0 A | 8.0 A | ||
| 1/4 of max. output power @ 4 Ω* | 1,625 W | 7.4 A | 14.8 A | ||
| THERMAL | |||||
|---|---|---|---|---|---|
| Environmental operating temperature | 0-45° C / 32-113° F | ||||
| Thermal dissipation | Fan, continuously variable speed, temperature controlled, front to rear airflow | ||||
| Idle | 96 kcal/hr | 382 BTU/hr | |||
| 1/8 of max. output power @ 4 Ω* | 211 kcal/hr | 836 BTU/hr | |||
| 1/4 of max. output power @ 4 Ω* | 326 kcal/hr | 1,390 BTU/hr | |||
| AUDIO | |||||
|---|---|---|---|---|---|
| Gain (selectable via user menu) | 26 dB | 29 dB | 32 dB | 35 dB | |
| Input sensitivity @ 8 Ω | 5.30 V | 3.75 V | 2.66 V | 1.88 V | |
| Max input level | 27 dBu | 24 dBu | 21 dBu | 18 dBu | |
| Gate | -52 dBu | -55 dBu | -58 dBu | -61 dBu | |
| Input impedance | 10 kΩ balanced | ||||
| Frequency response | 20 Hz - 20 kHz (1 W @ 8 Ω, ±0.5 dB) | ||||
| THD+N / SMPTE IMD / DIM100 IMD | <0.3% from 1 W to full power (typically <0.05%) | ||||
| S/N ratio | >106 dBA (20 Hz - 20 kHz, A weighted) | ||||
| Crosstalk separation | >70 dB @ 1 kHz | ||||
| Slew rate | 50 V/µs @ 8 Ω. input filter bypassed | ||||
| Damping factor | >5000 @ 20 - 200 Hz | ||||
| FRONT PANEL | |||||
|---|---|---|---|---|---|
| Indicators | 7 meter LEDs: 5 x green, 1 x yellow, 1 x red, top yellow and red show alarm with protect description on LCD panel | ||||
| Controls | 4 pushbuttons, function depending on user menu | ||||
| Maintenance | SmartCard reader/writer for firmware updates and preset storage. Easily accessible dust filter foam behind two steel covers | ||||
| REAR PANEL | |||||
|---|---|---|---|---|---|
| Audio signal input connectors | Analog: 2 x balanced Neutrik® XLR female; AES3: use channel 2 XLR | ||||
| Audio signal output connectors | Analog: 2 x balanced Neutrik® XLR male | ||||
| Loudspeaker output connectors | 2 x Neutrik® Speakon NL4MD | ||||
| Network data port RS485 | 1 x RJ45 with 2 recessed rotary encoders for ID selection | ||||
| Aux voltage | 1 x 2-pin Phoenix P. 3.81mm | ||||
| AC mains | IEC20A with IEC20A Schuko for EU, IEC20A/American 15A pin plug | ||||
| Controls | 1 x link switch, linking analog inputs 1 and 2 AES3/analog input switch | ||||
| CONSTRUCTION | |||||
|---|---|---|---|---|---|
| Dimensions | W 483 mm / 19", H 44.5 mm / 1U, D 380 mm / 15" | ||||
| Weight | 8kg / 17.7 lbs | ||||
| Chassis | 1 mm / 0.04” steel chassis and removable dust cover 3 mm / 0.12” steel front panel, screw hole protection, side reinforcement & rear support | ||||
| DSP SPECIFICATIONS (optional) | |||||
|---|---|---|---|---|---|
| A/D converter | Dual 24bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD <0.005% (20 Hz - 20 kHz) | ||||
| D/A converter | Dual 24bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD <0.003% (20 Hz - 20 kHz) | ||||
| Memory | 8 MB (RAM) plus 2 MB (flash for presets) | ||||
| Presets | 50 stored locally + 150 stored on a smartcard | ||||
| Digital audio input | AES3 (glitchless fallback to analog audio selectable) | ||||
| Delay for time alignment | Up to 4 s on the input section, up to 32 ms per output, sample-by-sample stepping | ||||
| Crossover filters | Butterworth, Linkwitz-Riley, Bessel, Arbitrary Asymmetric, 6dB/oct to 48dB/oct (IIR), linear phase (FIR), hybrid (FIR+IIR) | ||||
| Output equalizer | 16 fully parametric filters per channel, IIR: peaking, hi/lo shelving, hi/lo pass eq, band pass, band stop, all pass. Custom FIR up to 384 taps @ 48 or 96 kHz | ||||
| Input equalizer | Three layers (PEQ, raised cosine, shelving), 32 filters each + group filters, up to 256 filters per channel | ||||
| Cable compensation network | Up to 2 Ω negative/positive wire compensation (Active DampingControl™) | ||||
| Limiter | Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter | ||||
