CU M-ACOUSTICS DSP - MA 48  PLUS =32 BITI ,( DSP digital cu 8 iesiri analogice,digital sau optice ),se poate obtine controlul complet al sunetului . Pot fi conectate 250 de aparate ,prin RS485 , ce poti fi controlate de la maxim 1500 m

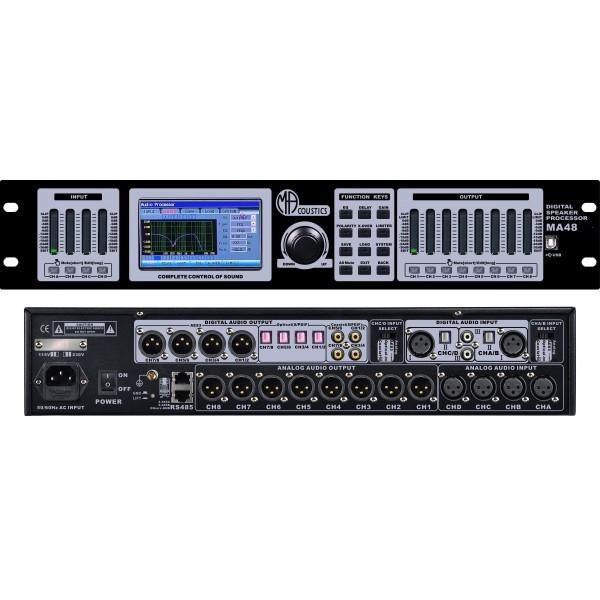

Specificatii pentru PROCESOR M-ACOUSTICS DSP - MA 48



Five in one Multifunctional product, combine processor, signal generator ,ADC,DAC and optical transmitter£¨if your device's Real Panel the same as the "Real Panel A "in the Help File, then it has the ADC, DAC and optical function£©; 192KHz Sampling Frequency, 32-bit DSP Processor, 24-bit A/D and D/A converter; USB and RS485 Connector are available. 250pcs of the devices can be connected together via RS485 and it can be remote controlled far from 1500m; You can operate the functions via the front panels directly; 30 kinds of program can be stored into the device; The device can be locked through setting password by"System"key on the panel , in order to avoid the setted programs damaged; Each Input Channel comes with independent 6-Bands Parametric EQ. Each output Channels comes with independent 15-Bands Parametric EQ; 4.3" Color LCD is applied with Pixels of 480*272 pcs of RGB; 12-Bands LED Digital Level Meter can tell you the status of Input ,Output and Edit; Delay ,Phase Control and Mute setting are all available in each Input and Output channel. The delay is mostly up to 1000ms. For Delay ,ms, m or ft can be displayed together; Signal Generator; Password Function; Matrix and Mute in Channels can be controlled through connecting Central Console and the device by USB and RS485.
