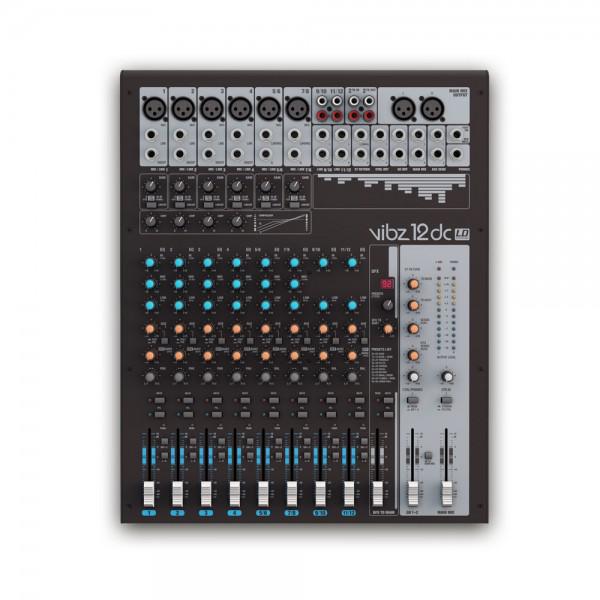

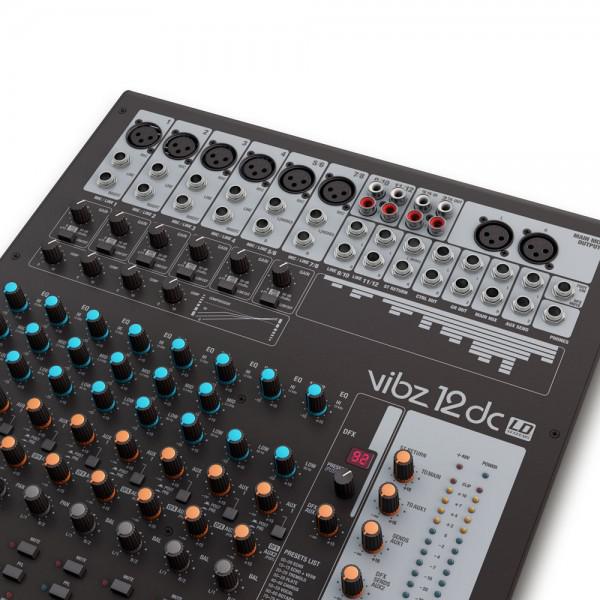

Mixer pasiv LD-Systems VIBZ 12 DC

Specificatii:

• Numar de canale: 12
• Mono Mic/Line Input Channels: 4
• Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
• Mono Mic Input Type: electronically balanced
• Frequency Response Mono Mic Input: 10 - 45,000 Hz
• Amplification Range Mono Mic Input: 0 - +50 dB (channel 1-4)
• Channel Insert: 4
• Channel Insert Connections: 6.3 mm stereo jack (TIP= send / RING= return)
• Channel Crosstalk: 62 dB
• THD Mono Mic Input: 0.0058 %
• Impedance Mono Mic Input: 4 kOhm
• S/N Ratio Mono Mic Input: 113 dB
• Mono Line Input Type: electronically balanced
• Frequency Response Mono Line Input: 10 - 45,000 Hz
• Amplification Range Mono Line Input: 0 - +50 dB
• THD Mono Line Input: 0.0045 %
• Impedance Mono Line Input: 21 kOhm
• S/N Ratio Mono Line Input: 116 dB
• Mono Channel Equalizer Treble: +/- 15 dB  12,000 Hz
• Mono Channel Equalizer Mids: +/- 15 dB  2,500 Hz
• Mono Channel Equalizer Bass: +/- 15 dB  80 Hz
• Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, AUX 2 (Post), Pre/Post for DFX/AUX 1, DFX/AUX 1, 3 band-EQ (Low, Mid, High), Compressor (channel 1-4) Low-Cut (channel 1-7/8), Gain
• Low Cut: 95 Hz
• Phantom Power: +48 V DC switchable
• Compressor: Yes, sliding adjustable characteristic
• Stereo Line Input Channels:    4
• Stereo Line Input Channels:    2 x 6.3 mm stereo jack (Lmono,R) (channel 5/6 + 7/8) 2 x 6.3 mm stereo jack (channel 9/10 + 11/12) 4 x RCA (Cinch) (Channel 9/10 + 11/12)
• Stereo Line Input Type: unbalanced / electronically balanced
• Frequency Response Stereo Line Input: 10 - 45,000 Hz
• Amplification Range Stereo Line Input: 0 - +50 dB
• Channel Crosstalk: 62 dB
• THD Stereo Line Input: 0.0045 %
• Impedance Stereo Line Input: 3.7 kOhm
• S/N Ratio Stereo Line Input: 116 dB
• Stereo Channel Equalizer Treble: +/- 15 dB  12,000 Hz
• Stereo Channel Equalizer Mids: +/- 15 dB  2,500 Hz (channel 5/6 + 7/8)
• Stereo Channel Equalizer Bass: +/- 15 dB  80 Hz
• Control Elements Stereo Line Input Channels:    Channel volume, Balance, AUX 2 (Post), Pre/Post for DFX/AUX 1, DFX/AUX1, 3 band EQ (Low, Mid, High), channel 5/6 + 7/8, 2-band EQ (Low, High) channel 9/10 + 11/12 Low-Cut channel 5/6 + 7/8 Gain channel 5/6 + 7/8
• Main Section:
• AUX/Effect Send Channels:    2
• AUX/Effect Send Connections: 6.3 mm stereo jack
• Stereo AUX Return Channels: 1 x stereo
• Stereo AUX Return Connections: 6.3 mm stereo jack
• Stereo Tape Output Channel: 1 x stereo
• Stereo Tape Output Connections: 2 x RCA (Cinch)
• Stereo Tape Input Channel: 1 x stereo
• Stereo Tape Input Connections: 2 x RCA (Cinch)
• Balanced Stereo Main Outputs: 1
• Balanced Stereo Main Output Connections: 2 x XLR
• Impedance Balanced Stereo Main Outputs: 120 Ohm
• Max. Level Balanced Stereo Main Outputs: +23 dBu
• Stereo Control Room Outputs: 1
• Stereo Control Room Output Connections:    6.3 mm stereo jack
• Group Outputs:  2
• Group Output Connections: 6.3 mm stereo jack
• Headphone Output: 1
• Headphone Output Connections: 6.3 mm stereo jack
• Minimum Headphone Impedance: 30 Ohm
• Digital Effects Processor: Yes, 24-bit AD/DA Resolution
• No. of Presets:    100
• Footswitch Connection DFX Mute: 6.3 mm stereo jack
• Control Elements Main Section: DFX To Main Volume, PFL, DFX Mute, DFX TO AUX Volume, Presets, Group 1-2 Volume, Group 1-2 assignment to Main MIX, CTRL / Phones assignment (Main/Group 1-2) Volume Control CTRL / Phones AUX 2 Send Volume, Aux 1 Send Volume, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Master Volume 2TK assignment (Main / CTRL) volume 2TK IN, Phantom Power, Power
• Display Elements: 12 segment level meter, Phantom Power, Power, Channel Peak, Channel PFL, Channel Mute, DFX TO MAIN, PFL, DFX Peak

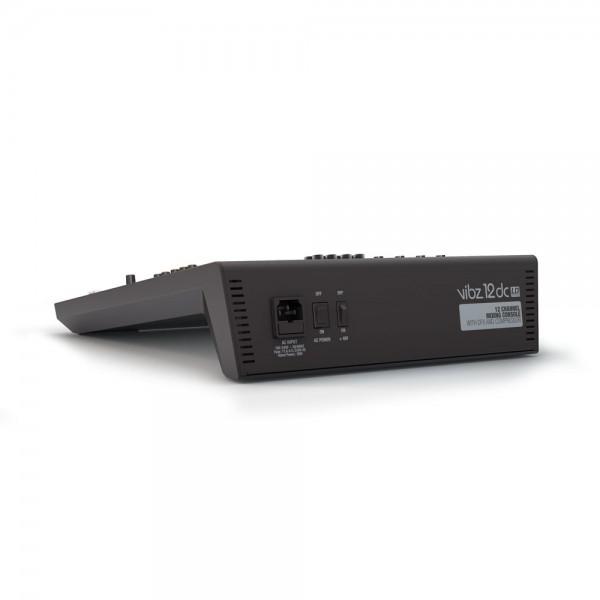

• Power Supply: AC 100-240 V / 50-60 Hz
• Power Connection: IEC power socket

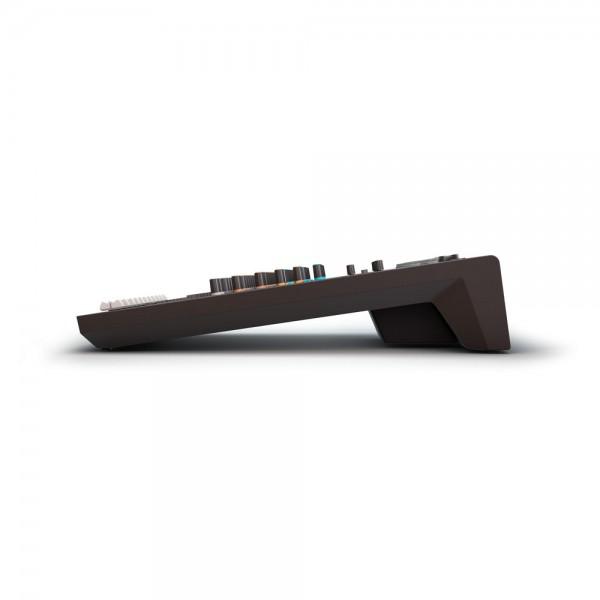

• Dimensiuni: 350 x 98 x 440 mm
