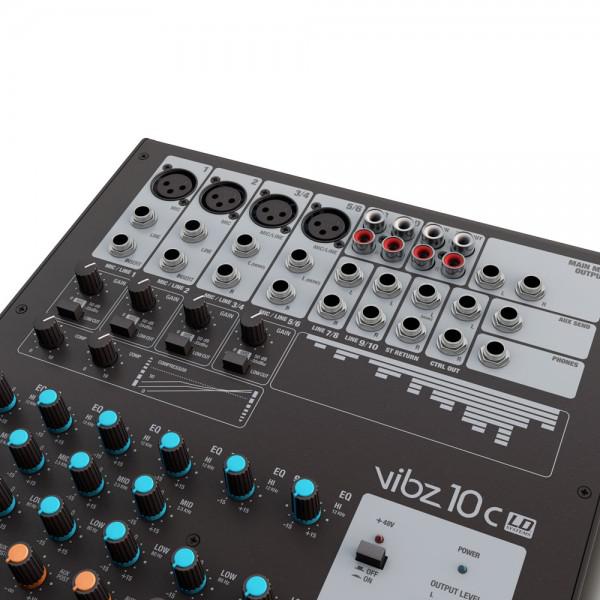

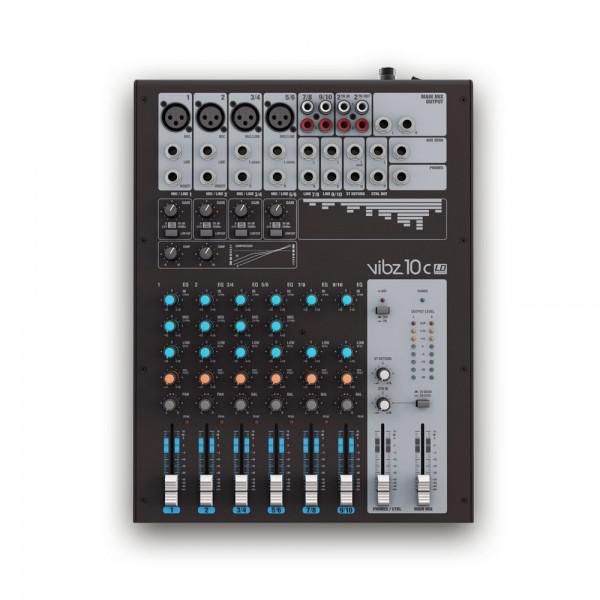

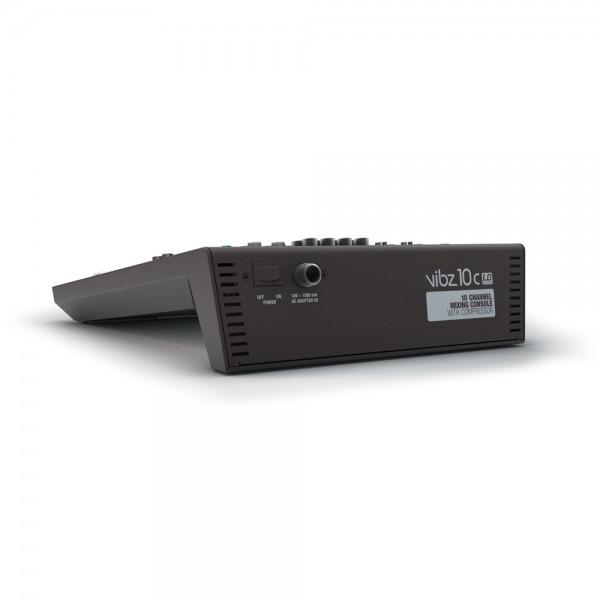

Mixer pasiv LD-Systems VIBZ 10 C
Specificatii:
- Number of Channels: 10
- Mono Mic/Line Input Channels: 4
- Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
- Mono Mic Input Type: electronically balanced
- Frequency Response Mono Mic Input: 10 - 45,000 Hz
- Amplification Range Mono Mic Input: 0 - +50 dB
- Channel Insert: 2
- Channel Insert Connections: 6.3 mm stereo jack (TIP= send / RING= return)
- Channel Crosstalk: 62 dB
- THD Mono Mic Input: 0.0058 %
- Impedance Mono Mic Input: 4 kOhm
- S/N Ratio Mono Mic Input: 113 dB
- Mono Line Input Type: electronically balanced
- Amplification Range Mono Line Input: 0 - +50 dB
- Frequency Response Mono Line Input: 10 - 45,000 Hz
- THD Mono Line Input: 0.0045 %
- Impedance Mono Line Input: 21 kOhm
- S/N Ratio Mono Line Input: 116 dB
- Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
- Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
- Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
- Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, AUX (Post), 3 band EQ (Low, Mid, High), Compressor (channel 1+2) Low-Cut, Gain
- Phantom Power: +48 V DC switchable
- Low Cut: 95 Hz
- Compressor: Yes, sliding adjustable characteristic
- Stereo Line Input Channels: 4
- Stereo Line Input Channels: 2 x 6.3 mm stereo jack (Lmono,R) (channel 3/4 + 5/6) 2 x 6.3 mm stereo jack (channel 7/8 + 9/10) 4 x RCA (Cinch) (Channel 7/8 + 9/10)
- Stereo Line Input Type: unbalanced / electronically balanced
- Frequency Response Stereo Line Input: 10 - 45,000 Hz
- Amplification Range Stereo Line Input: 0 - +50 dB
- THD Stereo Line Input: 0.0045 %
- Impedance Stereo Line Input: 3.7 kOhm
- S/N Ratio Stereo Line Input: 116 dB
- Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
- Stereo Channel Equalizer Mids: +/- 15 dB 2,500 Hz (channel 3/4 + 5/6)
- Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
- Control Elements Stereo Line Input Channels: Channel volume, Balance, AUX (Post), 3 band EQ (Low, Mid, High), channel 3/4 + 5/6, 2-band EQ (Low, High) channel 7/8 + 9/10 Low-Cut channel 3/4 + 5/6 Gain channel 3/4 + 5/6
- Main Section:
- AUX/Effect Send Channels: 1
- AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
- Stereo AUX Return Channels: 1 x stereo
- Stereo AUX Return Connections: 6.3 mm stereo jack
- Stereo Tape Output Channel: 1 x stereo
- Stereo Tape Output Connections: 2 x RCA (Cinch)
- Stereo Tape Input Channel: 1 x stereo
- Stereo Tape Input Connections: 2 x RCA (Cinch)
- Unbalanced Stereo Main Outputs: 1
- Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
- Impedance Unbalanced Stereo Main Outputs: 120 Ohm
- Max. Level Unbalanced Stereo Main Outputs: +20 dBV
- Stereo Control Room Outputs: 1
- Stereo Control Room Output Connections: 6.3 mm stereo jack
- Headphone Output: 1
- Headphone Output Connections: 6.3 mm stereo jack
- Minimum Headphone Impedance: 30 Ohm
- Digital Effects Processor: no
- No. of Presets: none
- Footswitch Connection DFX Mute: n/a
- Control Elements Main Section: Headphones / Control Room Volume 2TK In, Stereo Return Volume, Phantom Power, Master Volume, 2TR allocation (Main, CTRL Room)
- Display Elements: 8-segment Level Meter, Phantom Power, Power, Channel Peak
- Power Supply: 18 V AC - 1 A, External PSU
- Dimensiuni: 265 x 78 x 352 mm
