DIFUZOR FAITALPRO 12HP1010
| PRODUCATORI | : FAITAL | |
 |
|
IN ACEASTA PERIOADA, PRETURILE POT AVEA MODIFICARI FRECVENTE
● Inainte de a plasa o comanda, va rugam sa ne contactati telefonic sau prin e-mail pentru verificarea disponibilitatii stocului si al pretului. Va multumim!
● PRETURILE PRODUSELOR POT FI MODIFICATE, CHIAR DACA A FOST PLASATA O COMANDA PENTRU ACELE PRODUSE, CONSUMATORUL URMAND SA FIE INSTIITANT DESPRE ACEASTA MODIFICARE.
Difuzor FaitalPRO 12HP1010, 700W RMS, un difuzor de 12", cu o gama de frecventa 45÷3150 Hz.

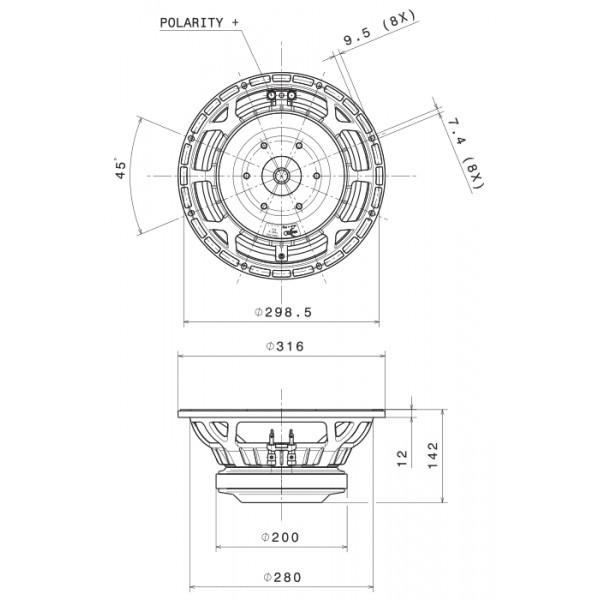

NOMINAL SPECIFICATIONS
| Nominal Diameter | 300 mm (12 in) |
| Overall Diameter | 316 mm (12.44 in) |
| Bolt Circle Diameter | 298.5 mm (11.75 in) |
| Baffle Cutout Diameter | 282 mm (11.10 in) |
| Depth | 142 mm (5.59 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Net Weight | 9.22 Kg (20.33 lb) |
| Shipping Box (Single Carton Box) |
350x346x190 mm (13.78x13.62x7.48 in) |
| Shipping Weight | 10 Kg (22.05 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7 Ohm |
| AES Power Handling (1) | 700 W |
| Maximum Power Handling (2) | 1400 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 45÷3150 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Al |
| Former Material | Glass Fiber |
| Winding Depth | 22 mm (0.87 in) |
| Magnetic Gap Depth | 10.5 mm (0.41 in) |
| Flux Density | 1.05 T |
| Magnet | Ferrite Ring |
| Basket Material | Aluminum |
| Demodulation | No |
| Cone Surround (3) | M-Roll |
| NET Air Volume filled by Loudspeaker | 3.3 dm^3 (0.117 ft^3) |
| Spider Profile | 2x non-adjacent symmetrical constant height waves |
THIELE AND SMALL PARAMETERS
| Fs | 45 Hz |
| Re | 5.5 Ohm |
| Qes | 0.35 |
| Qms | 9.4 |
| Qts | 0.33 |
| Vas | 50 dm^3 (1.77 ft^3) |
| Sd | 496 cm^2 (76.9 in^2) |
| Xmax (4) | 9.25 mm |
| Xdamage (5) | 21.9 mm |
| Mms | 87.2 g |
| Bl | 19.8 N/A |
| Le | 1.33 mH |
| Mmd | 80.5 g |
| Cms | 0.14 mm/N |
| Rms | 2.62 Kg/s |
| Eta Zero | 1.28 % |
| EBP | 129 Hz |
